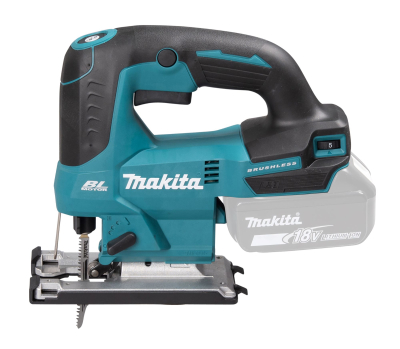

Makita DJV184Z 18V LXT Brushless Jigsaw – Barrel Grip, Body Only

Makita DJV184Z 18V LXT Brushless Jigsaw – Barrel Grip, Body Only

Stock Code: DJV184Z
Available to Order
£162.00 (inc VAT) per each
£135.00 (exc VAT)
Quantity: - +

Makita DJV184Z 18V LXT Brushless Jigsaw – Compact Barrel Grip Precision with Cordless Freedom (Body Only)


The Makita DJV184Z is a lightweight and highly maneuverable barrel grip cordless jigsaw, designed for precision cutting in wood, metal, and plastics. Powered by an efficient brushless motor and compatible with Makita’s 18V LXT battery platform, this tool offers excellent control, variable speed performance, and professional-grade durability. Its compact size and low-profile design make it ideal for fine work, tight cuts, and overhead applications—perfect for carpenters, fitters, and finishers who need cordless versatility without compromise.


✅ Key Benefits:

  • Brushless motor – increases efficiency, runtime, and durability

  • Barrel grip design – offers better control for intricate cuts and low-profile access

  • 18V LXT platform – compatible with all Makita 18V LXT batteries (sold separately)

  • Variable speed trigger + dial (800–3,000 spm) – tailor the stroke rate to your material and task

  • 3 orbital settings + straight cut mode – allows aggressive or fine cutting as needed

  • Tool-less blade change system – quick and easy blade swaps without tools

  • Bevel cuts up to 45° – for angled cuts in trim, joinery, and cabinetry

  • LED job light – enhances visibility of the cutting line in low-light work areas

  • Dust port for extraction – maintains a clear view of the blade and line of cut

  • Electric brake and soft start – ensures safer, more controlled operation

  • Perfect for professional joiners, builders, and installation trades


⚠️ Body only – battery, charger, and blades not included. Fully compatible with Makita 18V LXT batteries.

BrandMakita
Brushless MotorYes
Voltage18V
Product Dimensions (L x W x H):259 x 77 x 205 mm
Sound Power Level (LWA)93 dB(A)
Sound Pressure Level (LpA)82 dB(A)
Noise Uncertainty (K Factor)3 dB(A)
Strokes per Minute (SPM)0 - 3000 min⁻¹
Vacuum cleaner connection Ø in / out23/28 mm
Battery SystemLXT
Tool weight with battery2.1 - 2.4 kg
Nominal Battery Voltage18 V
Body OnlyYes
Body Only MachineYes
Voltage LXTYes
Max Output Power400 W
Max. Bevel Range (Left)45 º
Vibration Level. Cutting Sheet Metal5.1 m/s²
Vibration Uncertainty (K Factor). Cutting Sheet Metal1.5 m/s²
Length of Stroke23 mm
Max. Cutting Capacity in Wood (90°)135 mm
Vibration Level. Cutting Boards7.4 m/s²
Vibration Uncertainty (K Factor). Cutting Boards1.5 m/s²
Max. Cutting Capacity in Steel (90°)10 mm
Capacity Aluminium20 mm
Orbital ActionYes

There are no downloads for this product.
