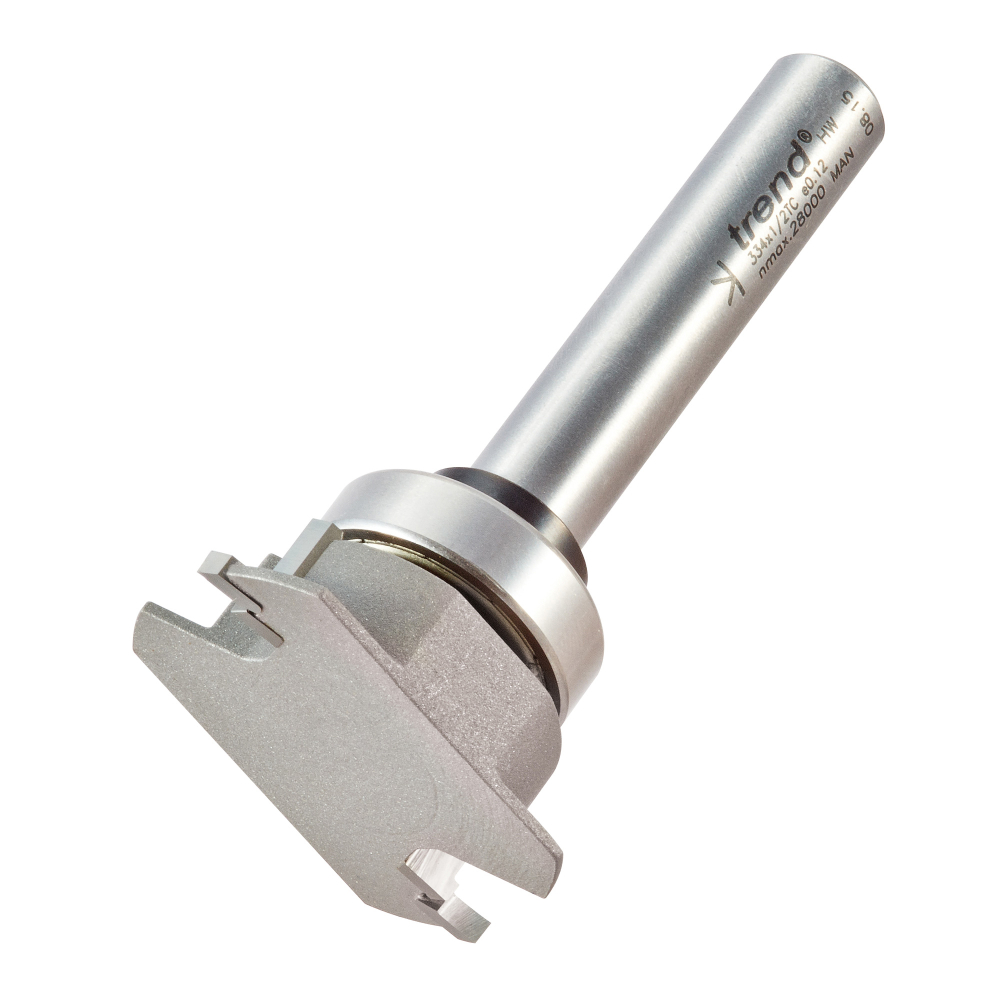

Trend 334X1/2TC Aquamac 21 recesser 46.3mm diameter x 10.3mm cut

Trend 334X1/2TC Aquamac 21 recesser 46.3mm diameter x 10.3mm cut

Stock Code: 334X1_2TC
Available to Order
£149.57 (inc VAT) per each
£124.64 (exc VAT)
Quantity: - +
Aquamac 21 recesser 46.3mm diameter x 10.3mm cut. D=46.3 mm|D2=34.3 mm|C=10.3 mm|C2=2.7 mm|OL=90 mm|B=28.6 mm|Shank Diameter=1/2 inch|For stationary machines at max. recommended speed 18,000 RPM Recessing cutter will accommodate the Schlegel Aquamac 21 or Exitex Aquatex A10 seal.|The cutter is designed for use with the seal in a wiping mode and comes complete with a guide bearing to reduce setting-up time and simplify machining operations.|Ref. 334 is MEC mechanical feed only.
BrandTrend
Shank Diameter1/2"
Diameter mm46.3
Cut Length mm2.7/10.3
Overall Length mm90
Bearing Diameter mm28.6
Bearing Diameter Imperial1 1/8"
Diameter 2 mm34.3

There are no downloads for this product.
