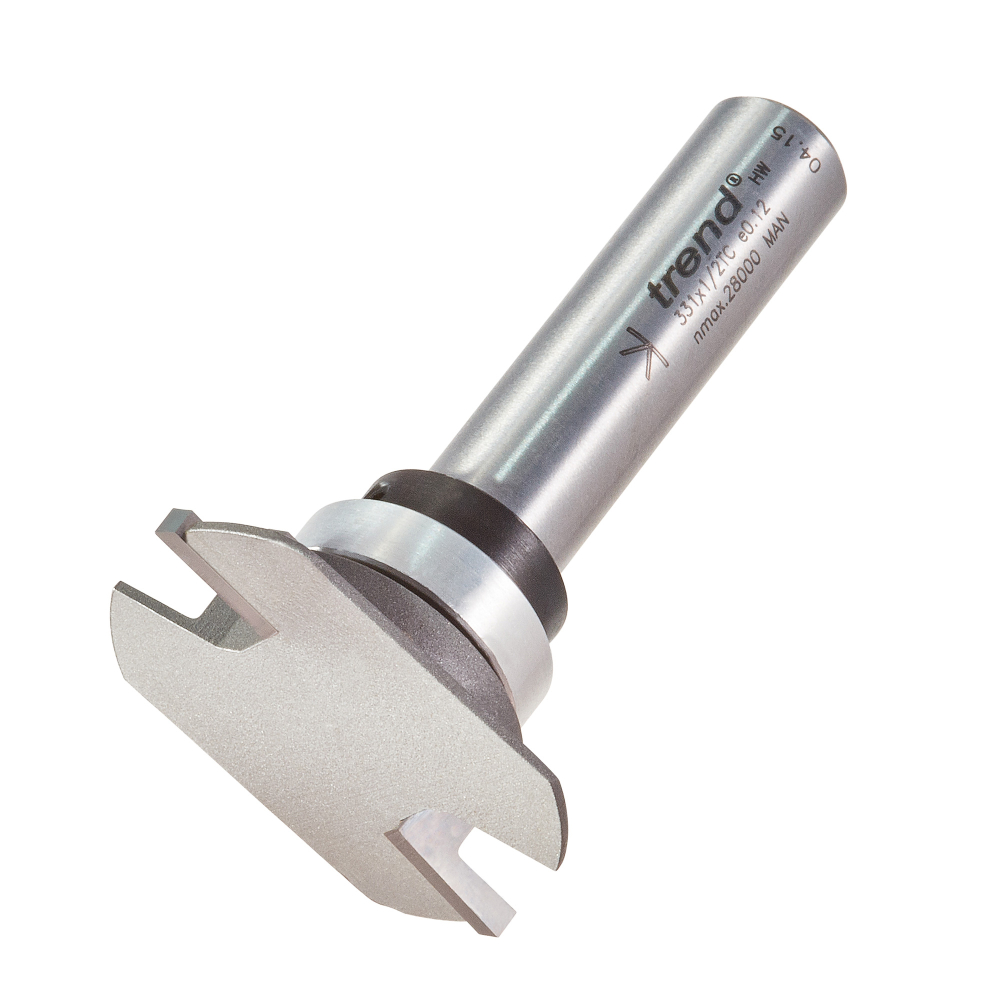

Trend 331X1/2TC Aquamac 63 recessor 41.3mm diameter x 4.8mm cut

Trend 331X1/2TC Aquamac 63 recessor 41.3mm diameter x 4.8mm cut

Stock Code: 331X1_2TC
Available to Order
£149.57 (inc VAT) per each
£124.64 (exc VAT)
Quantity: - +
Aquamac 63 recessor 41.3mm diameter x 4.8mm cut. D=41.3 mm|D2=28.3 mm|C=4.8 mm|C2=2.7 mm|OL=67 mm|B=22 mm|Shank Diameter=1/2 inch Trend weather seal recessing tool is designed to accomodate the popular Schlegel Aquamac 63 or Exitex Aquatex P6 weather strip system and allows for a particularly small gap between the sash and frame. |The slot can be positioned part way down the side of the rebate, or at the bottom of the rebate. |Ref. 331 comes complete with a guide-bearing to reduce setting-up time.
BrandTrend
Shank Diameter1/2"
Diameter mm41.3
Cut Length mm2.7/4.8
Overall Length mm67
Diameter Imperial1 5/8"
Bearing Diameter mm22
Diameter 2 mm28.3
