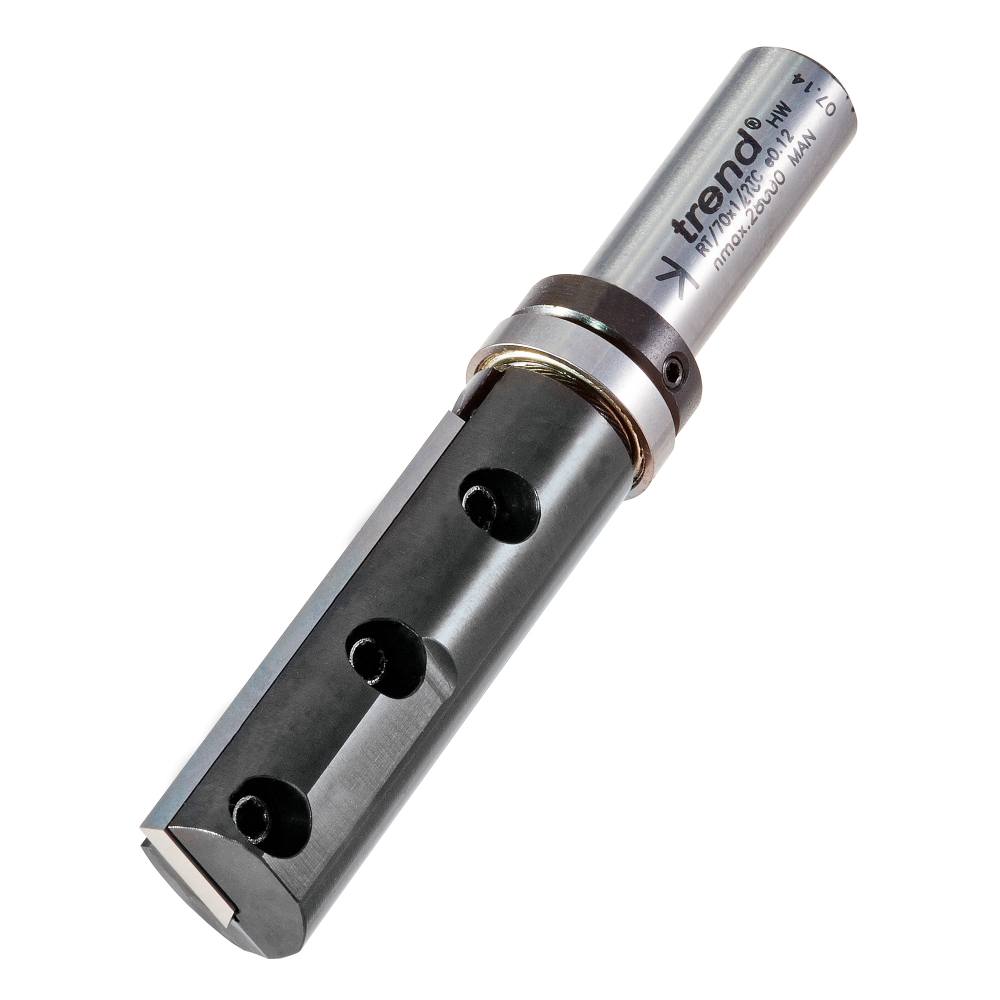

Trend RT/70X1/2TC Rota-Tip profiler 19.1mm diameter

Trend RT/70X1/2TC Rota-Tip profiler 19.1mm diameter

Stock Code: RT_70X1_2TC
Available to Order
£132.96 (inc VAT) per each
£110.80 (exc VAT)
Quantity: - +
Rota-Tip profiler 19.1mm diameter. D=1 31/32 inch|D=19.1 mm|C=3/4 inch|C=49.5 mm|B=19.1 mm|OL=100 mm|A=90 degrees|Shank Diameter=1/2 inch|Spare blade 2 hole=RB/B|Spare blade 3 hole=RB/T For template work. |Blade can be rotated 180 degree to give double the life of a conventional tool. |Cutter diameter of 19.1mm and bearing diameter of 19.05mm.|Spare blade for Ref. RT/70 from January 2013 is ref RB/T (three hole).|Ref. RT/70 has single flute.|Ref. RT/72 has two flutes.
BrandTrend
Shank Diameter1/2"
Diameter mm19.1
Cut Length mm49.5
Overall Length mm107
Type or GradeOne flute
Diameter Imperial3/4"
Bearing Diameter mm19.05

There are no downloads for this product.
