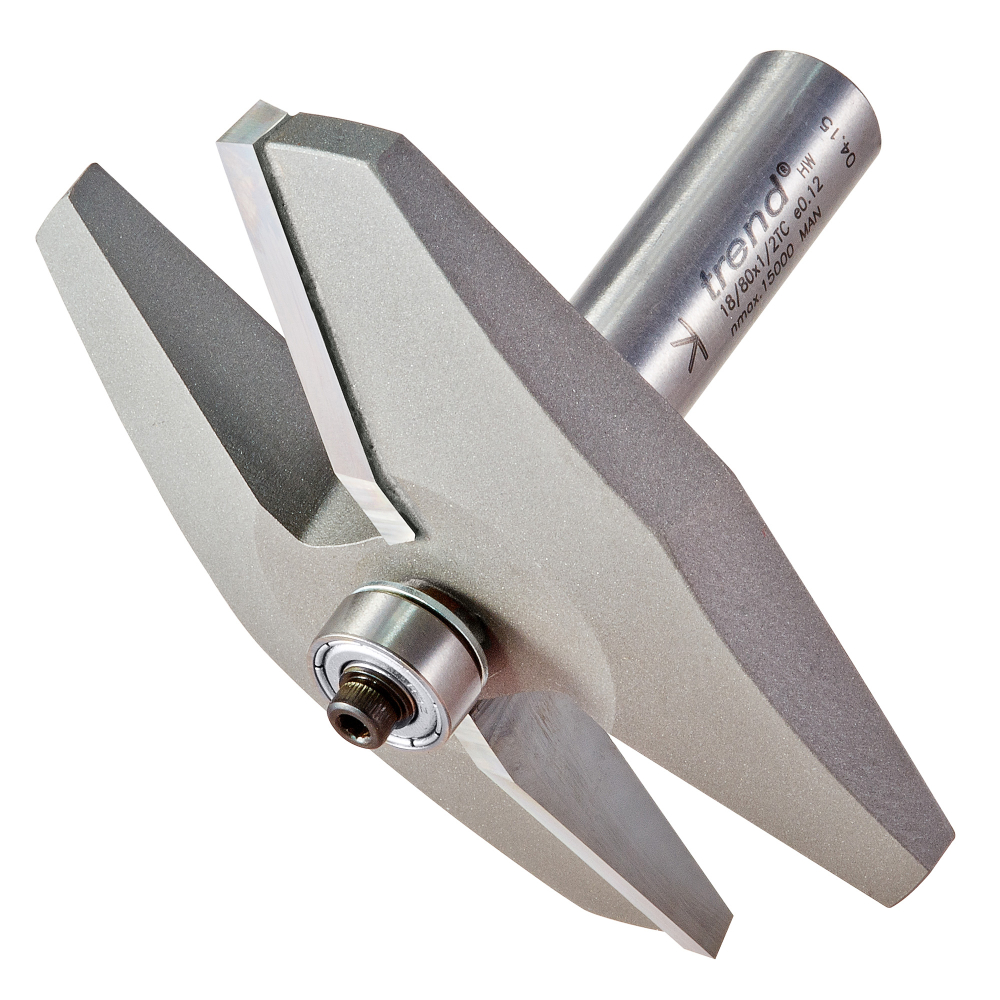

Trend 18/80X1/2TC Bearing guided panel cutter

Trend 18/80X1/2TC Bearing guided panel cutter

Stock Code: 18_80X1_2TC
Available to Order
£149.57 (inc VAT) per each
£124.64 (exc VAT)
Quantity: - +
Bearing guided panel cutter. D=86 mm|C=1/2 inch|C=12.7 mm|B=12.7 mm|A=15 degrees|OL=71 mm|Shank Diameter=1/2 inch|For stationary machines at max. recommended speed 12,000 RPM Machining of traditional panels and frame doors, formerly done on spindle moulders, can now be performed with heavy duty routers mounted in fixed positions, either overhead or inverted. These Raised Panel cutters run best at lower speeds and match our range of profile scribers. All are suitable for use on natural timber and MDF.|8mm hank tools are for use with medium and heavy duty routers only.|Suitable panel mould for use with Ref. PSC/5. Available as set Ref. PDS/5.
BrandTrend
Shank Diameter1/2"
Diameter mm86
Cut Length mm12.7
Overall Length mm71
Angle15
Bearing Diameter mm12.7
Bearing Diameter Imperial1/2"
Cut Length Imperial1/2"
