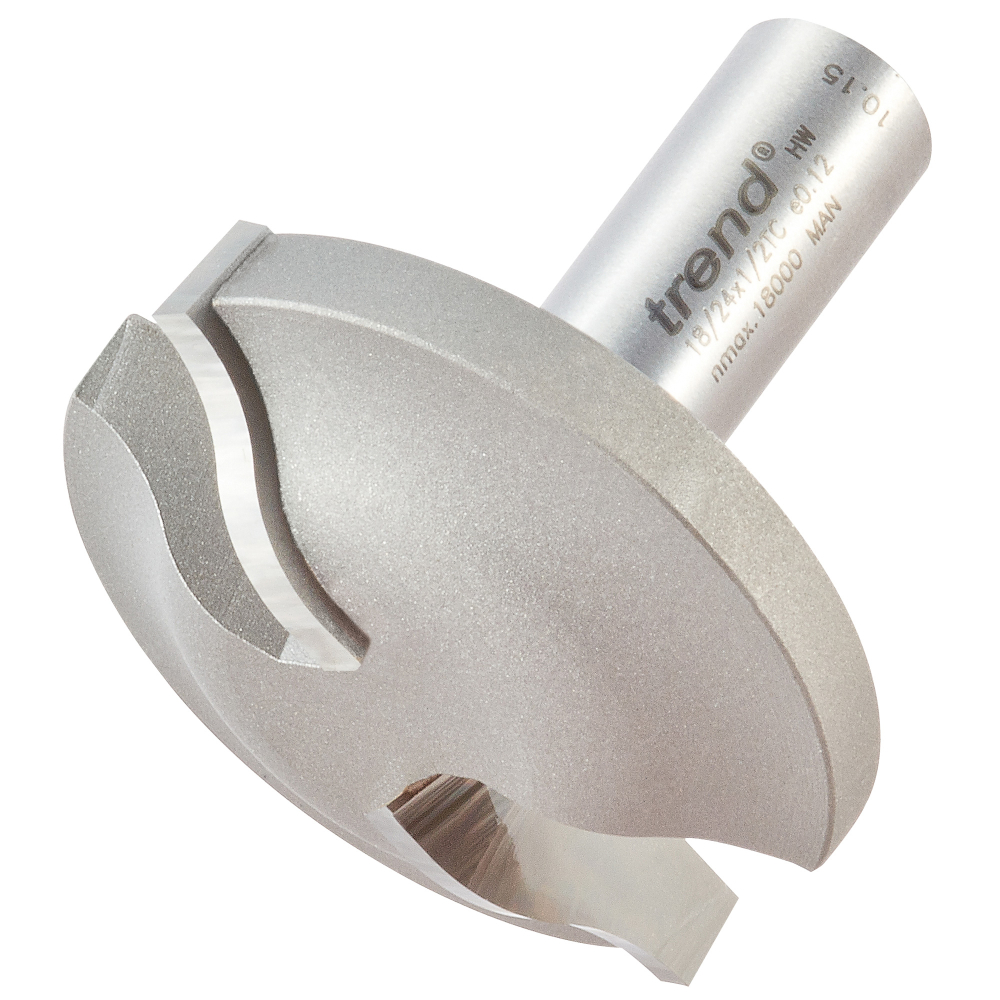

Trend 18/24X1/2TC Ogee panel raiser cutter

Trend 18/24X1/2TC Ogee panel raiser cutter

Stock Code: 18_24X1_2TC
Available to Order
£132.96 (inc VAT) per each
£110.80 (exc VAT)
Quantity: - +
Ogee panel raiser cutter. D=50 mm|D2=16 mm|C=14 mm|R=12 mm|OL=52 mm|Shank Diameter=1/2 inch|For stationary machines at max. recommended speed 18,000 RPM Machining of traditional panels and frame doors, formerly done on spindle moulders, can now be performed with heavy duty routers mounted in fixed positions, either overhead or inverted. These Raised Panel cutters run best at lower speeds and match our range of profile scribers. All are suitable for use on natural timber and MDF.|8mm hank tools are for use with medium and heavy duty routers only.|Suitable panel mould for use with Refs. PSC/1, PSC/10, PSC/2 & PSC/20.
BrandTrend
Shank Diameter1/2"
Diameter mm50
Cut Length mm14
Overall Length mm52
Radius 1 mm12
Diameter 2 mm16

There are no downloads for this product.
