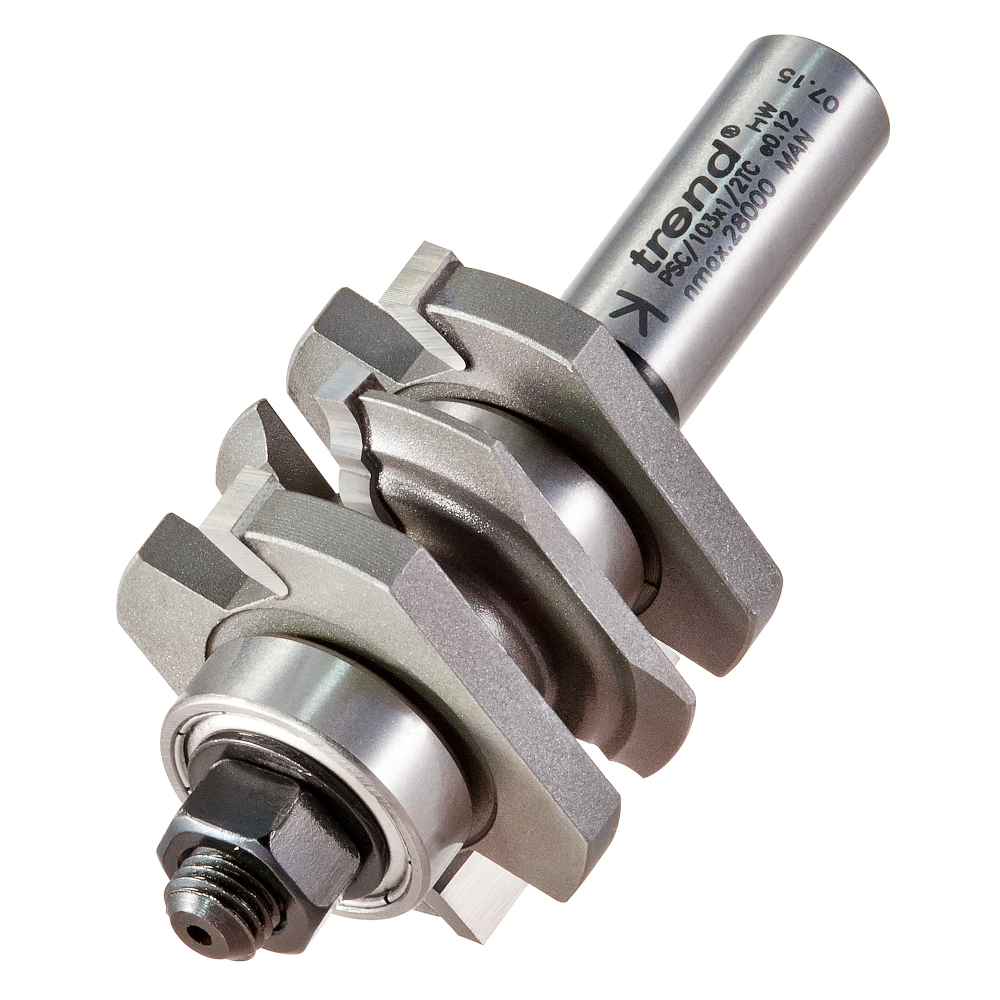

Trend PSC/103X1/2TC Easyset profile scribe set

Trend PSC/103X1/2TC Easyset profile scribe set

Stock Code: PSC_103X1_2TC
Available to Order
£182.83 (inc VAT) per each
£152.36 (exc VAT)
Quantity: - +
Easyset profile scribe set. D=41 mm|C=11 mm|C2=6.3 mm|B=22 mm|R=3.5 mm|OL=87 mm|Shank Diameter=1/2 inch|Timber thickness min.=18 mm|Timber thickness max.=22 mm|For stationary machines at max. recommended speed 18,000 RPM These tools produce the same type of joint & use the same components as the combination PSC sets.|Both parts of the joint are cut by only changing the cutter height.|No reassembly of parts is required, to convert the tool from scribing mode to profiling mode and vise-versa.|Router table use only.
BrandTrend
Shank Diameter1/2"
Diameter mm41
Cut Length mm11
Overall Length mm87
Radius 1 mm3.5
