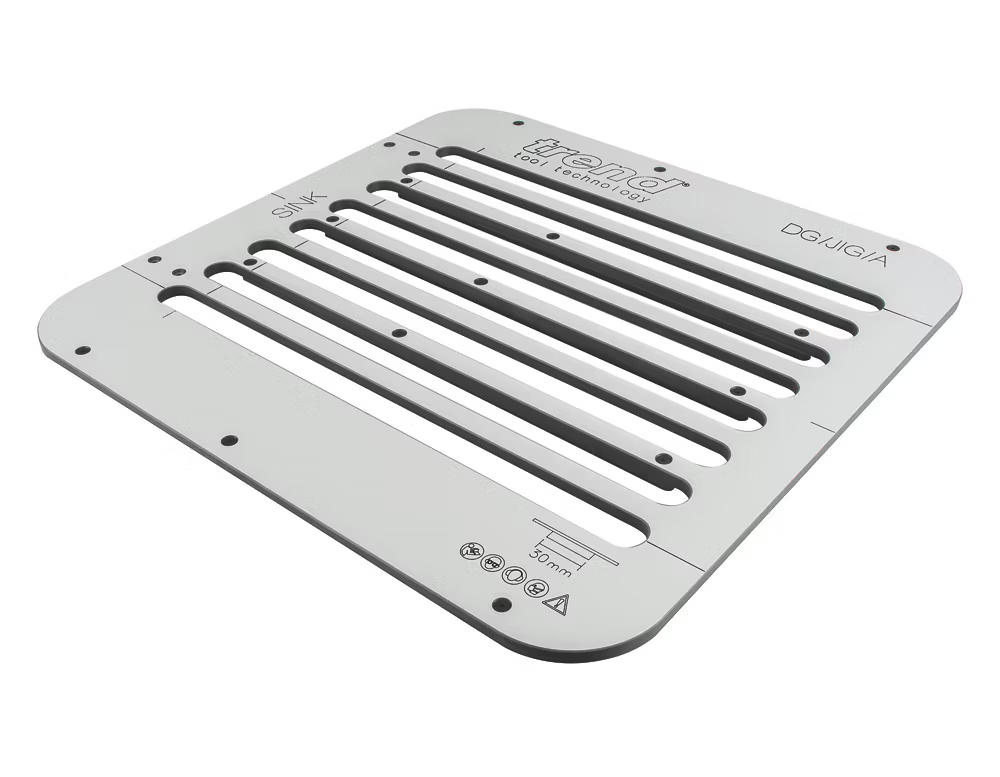

Trend DG/JIG/A Drainer Groove Jig

Trend DG/JIG/A Drainer Groove Jig

Stock Code: DG_JIG_A
Available to Order
£149.99 (inc VAT) per each
£124.99 (exc VAT)
Quantity: - +
Drainer Groove Jig. Fall=0.5 degree|Groove Pitch=50 mm|Groove Length=445 mm|Jig Length=600 mm|Jig Width=585 mm|Jig Thickness=12 mm|Weight=4.3kg A precision jig for routing draining grooves in solid timber and compact laminate worktops when installing Belfast, farmhouse, and undermount sinks. |CNC-Machined Compact Grade HPL provides precision, strength and durability.|5 Tapered Support Runners for ultimate router support and maximum groove accuracy.|8 x 445mm Drainer Grooves at 50mm centres.|Etched Sight Lines for quick setup.|In-Built 0.5 Fall minimises setup time.|Custom Edge-Guide Facility to accommodate user-made stops for custom, repetitive installations.|Requires: Router (min.1300W), 30mm Guide Bush, Cutter, 3 x F-Clamps.
BrandTrend
