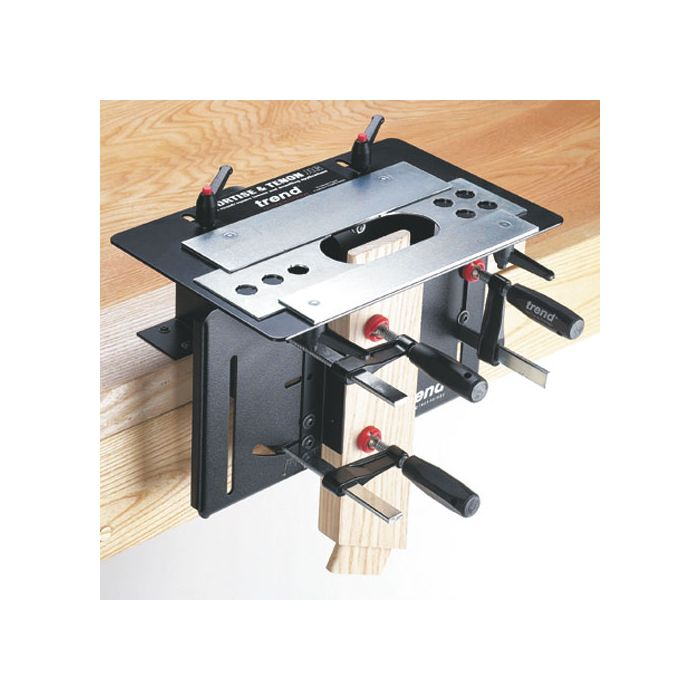

Mortise and Tenon Jig (Imperial Size). Material thickness min.=12 mm|Material thickness max.=47 mm|Tenon thickness min.=4.8 mm|Tenon thickness max.=16 mm|Tenon width max. using vertical guide+=90 mm|Tenon length max.++=Approx. 25 mm|Mortise length max. using vertical guide+++=90 mm|Angle tilt compound=-10 degree to 45 degrees|++ depends on cut length and plunge depth of the router.|+++unlimited if vertical guide removed and wood repositioned. Enables mortise & tenons and dowel joints to be cut with a router. |Ideal for cabinet, chair and table.|CNC precision manufactured plates and body.|One set-up for both mortise and tenon giving perfectly fitting joints.|Fully adjustable for compound angle joints up to 45 degree.|Reversible templates to produce round and square end tenons. |Templates can be used for accurate dowelling applications.|Cuts mortise & tenon sizes of 1/4 inch (6.35mm) to 5/8 inch (15.9mm).|Guide bushes are included but cutters are required.|A Unibase may be required for certain makes & models of router.|All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026). |The width of the tenon is adjusted by using different guide bush diameters.|Jig requires:|A portable plunge router with 6.35 mm (1/4 inch) shank capacity.
