Makita AF506 18Ga Brad Nailer – 15–50mm Pneumatic Finishing Tool

Makita AF506 18Ga Brad Nailer – 15–50mm Pneumatic Finishing Tool

Stock Code: AF506
Available to Order
£132.00 (inc VAT) per each
£110.00 (exc VAT)
Quantity: - +

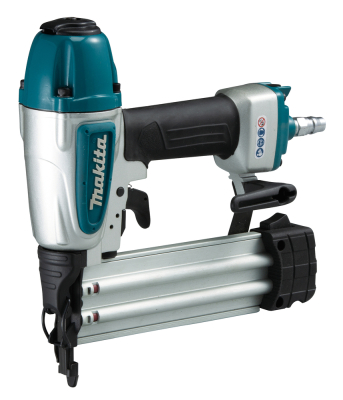

Makita AF506 18Ga Pneumatic Brad Nailer

The Makita AF506 is a lightweight, precise 18-gauge pneumatic brad nailer, engineered for fine finishing, trim work, cabinetry, and delicate carpentry. It drives 15–50 mm (½" – 2 ") 18-gauge brad nails, leaving a minimal, clean finish ideal for mouldings, decorative trim, and other detailed applications.


Featuring a tool-free depth adjustment, narrow nose, and no-mar tip, the AF506 ensures accurate nail placement without damaging the workpiece. Its dual-trigger safety, rear exhaust, and ergonomic grip make it both safe and comfortable for extended use in production or on-site environments.


✅ Key Benefits:

  • Drives 18 Ga brad nails 15–50 mm (½"–2") – versatile for most finishing applications

  • Tool-free depth adjustment – quickly set nail depth for flush, professional results

  • No-mar tip – protects delicate surfaces from scratches and marring

  • Narrow nose design – enhanced line of sight for precise placement in tight corners

  • Dual-trigger safety – prevents accidental firing for added operator protection

  • Rear exhaust – directs airflow away from user and workpiece

  • Lightweight (1.2 kg) – reduces fatigue during prolonged use

  • Clear reload window – see remaining nails at a glance and minimise downtime


📦 Kit Contents:

  • 1× Makita AF506 18 Ga Pneumatic Brad Nailer

  • 1× No-Mar Tip Cap (pre-installed)

  • 1× Adjustable Depth Collar

  • 1× Safety Goggles

  • 1× Air Fitting Plug

  • 1× Carry Case

  • 1× Instruction Manual


⚠️ Please Note:
Requires an air compressor (60–115 psi / 4–8 bar) and 18 Ga brad nails (sold separately). Always wear appropriate PPE when operating pneumatic tools.

BrandMakita
Fastener Magazine Capacity100
Nail Length15 - 50 mm
Nail Diameter1.2 mm
Operating pressure4.9 - 8.3 bar
Fastener Gauge18 Ga
Depth AdjustmentYes
Vibration Level (3 axes)7.6 m/s²
Vibration Uncertainty (K Factor)1.5 m/s²
Product Dimensions (L x W x H):250 x 70 x 256 mm
Product net weight1.3 kg
Magazine Angle0 º
Plastic Carrying CaseYes
Sound Power Level (LWA)109 dB(A)
Sound Pressure Level (LpA)99 dB(A)
Noise Uncertainty (K Factor)1.5 dB(A)
