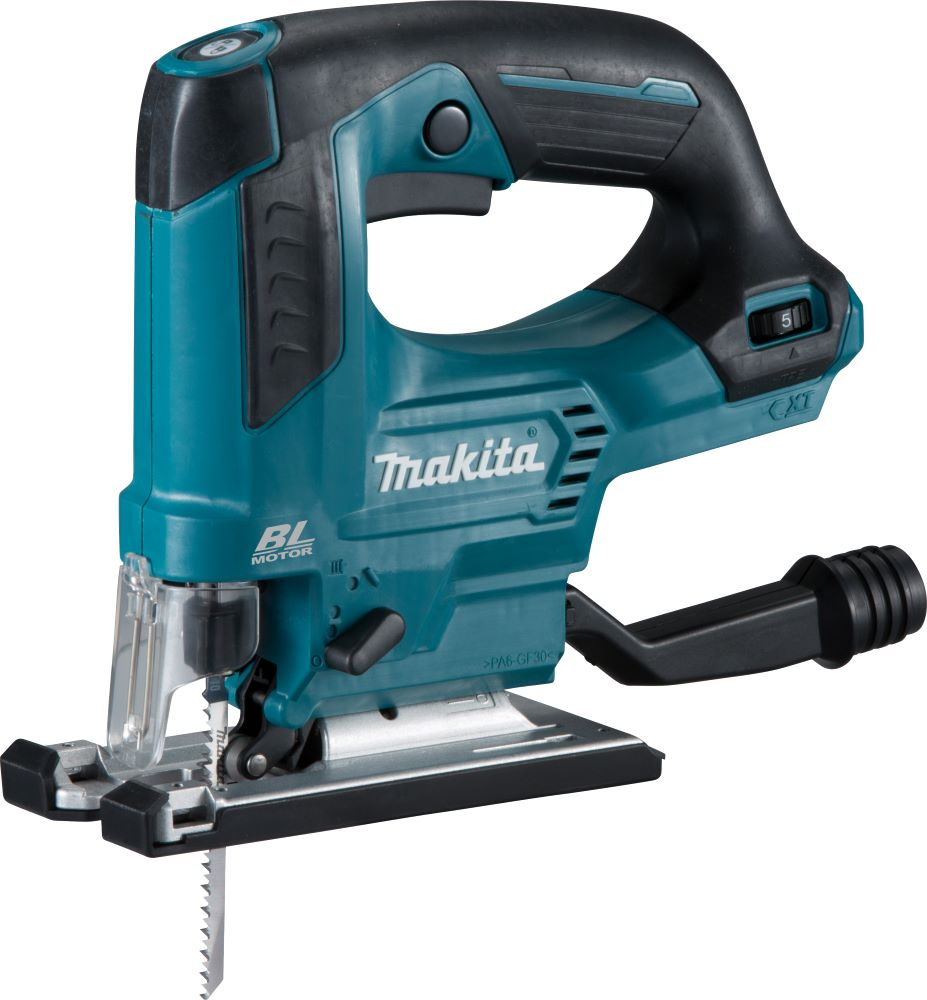

Makita JV103DZ 12V Max Brushless Top Handle Jigsaw – Body Only

Makita JV103DZ 12V Max Brushless Top Handle Jigsaw – Body Only

Stock Code: JV103DZ
Available to Order
£163.20 (inc VAT) per each
£136.00 (exc VAT)
Quantity: - +

Makita JV103DZ 12V Max CXT Brushless Top Handle Jigsaw – Body Only

The Makita JV103DZ is a compact and efficient brushless jigsaw, designed for precision cutting in wood, plastic, metal, and more. Featuring a top handle design for maximum control and comfort, this cordless tool is ideal for intricate cuts, scroll work, and general-purpose applications.


The brushless motor delivers excellent runtime and durability, while the tool-less blade change, orbital settings, and bevel adjustment make this jigsaw a versatile choice for site or workshop use. As part of the Makita 12V Max CXT platform, it’s compatible with all CXT slide-type batteries.


✅ Key Benefits:

  • Body only – battery and charger sold separately

  • Brushless motor – improved runtime, efficiency, and motor life

  • Top handle design – ergonomic grip and visibility for precision cuts

  • Tool-less blade clamp – quick, easy blade changes

  • 3 orbital settings + straight cut – adaptable to different materials

  • Bevel cuts up to 45° – for mitre or angled applications

  • Variable speed control (800–3,000spm) – tailored to material type

  • LED job light & dust blower – clear view of the cut line

  • Compatible with all Makita 12V Max CXT batteries


⚠️ Please Note:
This is a body-only model. Battery and charger are not included. Always use suitable blades for your application and wear correct PPE.

BrandMakita
Brushless MotorYes
Voltage12V
Vibration Uncertainty (K Factor)1.5 m/s²
Product Dimensions (L x W x H):237 x 76 x 206 mm
Sound Power Level (LWA)96 dB(A)
Sound Pressure Level (LpA)85 dB(A)
Noise Uncertainty (K Factor)3 dB(A)
Strokes per Minute (SPM)800 - 3000 min⁻¹
Vacuum cleaner connection Ø in / out23/28 mm
Battery SystemCXT
Tool weight with battery1.9 - 2.0 kg
Nominal Battery Voltage12 V
Body OnlyYes
Body Only MachineYes
Voltage CXTYes
Max Output Power280 W
Max. Bevel Range (Left)45 º
Vibration Level. Cutting Sheet Metal6.0 m/s²
Length of Stroke23 mm
Max. Cutting Capacity in Wood (90°)90 mm
Vibration Level. Cutting Boards8.5 m/s²
Max. Cutting Capacity in Steel (90°)10 mm
Capacity Aluminium20 mm
Orbital ActionYes
