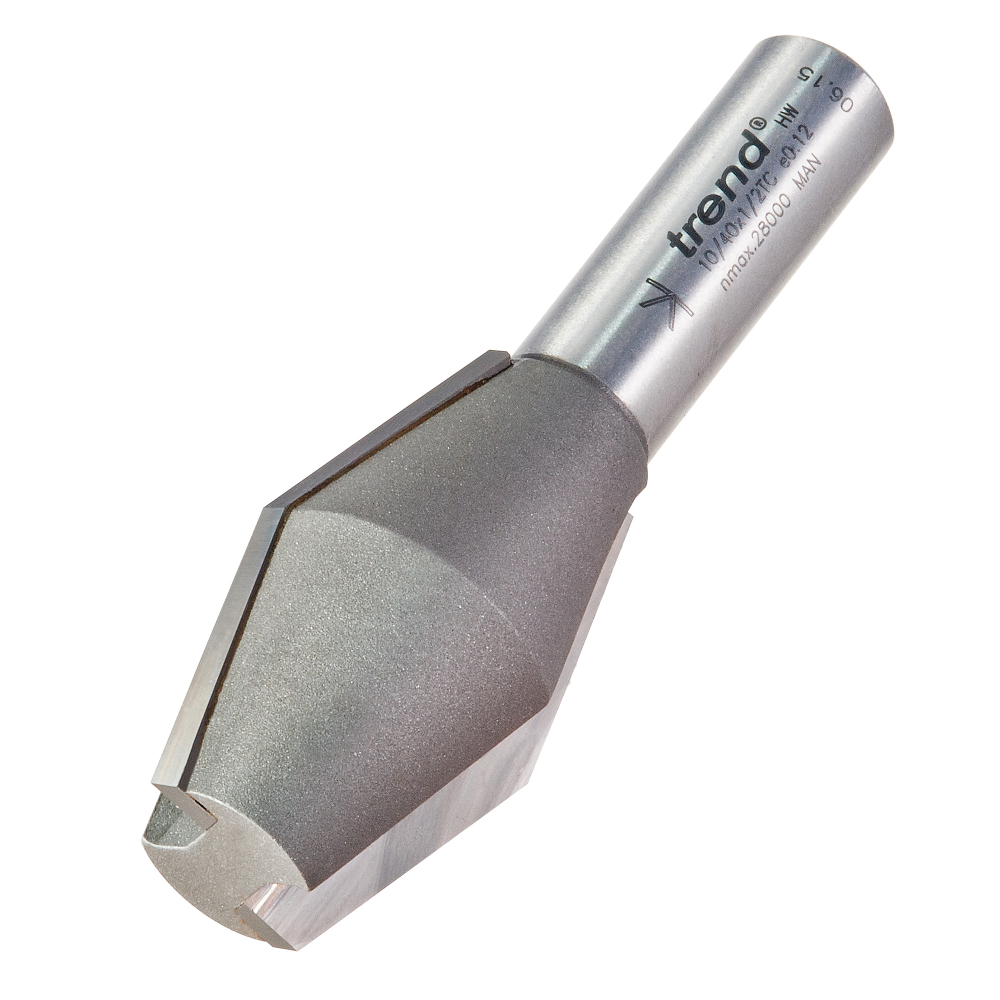

Trend 10/40X1/2TC Butterfly spline cutter 104 deg

Trend 10/40X1/2TC Butterfly spline cutter 104 deg

Stock Code: 10_40X1_2TC
Available to Order
£107.88 (inc VAT) per each
£89.90 (exc VAT)
Quantity: - +
Butterfly spline cutter 104 deg . D=28.0 mm|C=46 mm|A=104 degree (14 degree)|OL=84 mm|Shank Diameter=1/2 inch To rout butterfly key and splines in timbers and man-made boards.|Use in conjunction with 104 deg (14 deg) dovetail cutter ref. L120 which cuts dovetail pocket.|Use in a router table. |Cut material in two passes to create a butterfly shape, width of butterfly spline is determined by dovetail cutter used.
BrandTrend
Shank Diameter1/2"
Diameter mm28
Cut Length mm46
Overall Length mm84
Angle104

There are no downloads for this product.
