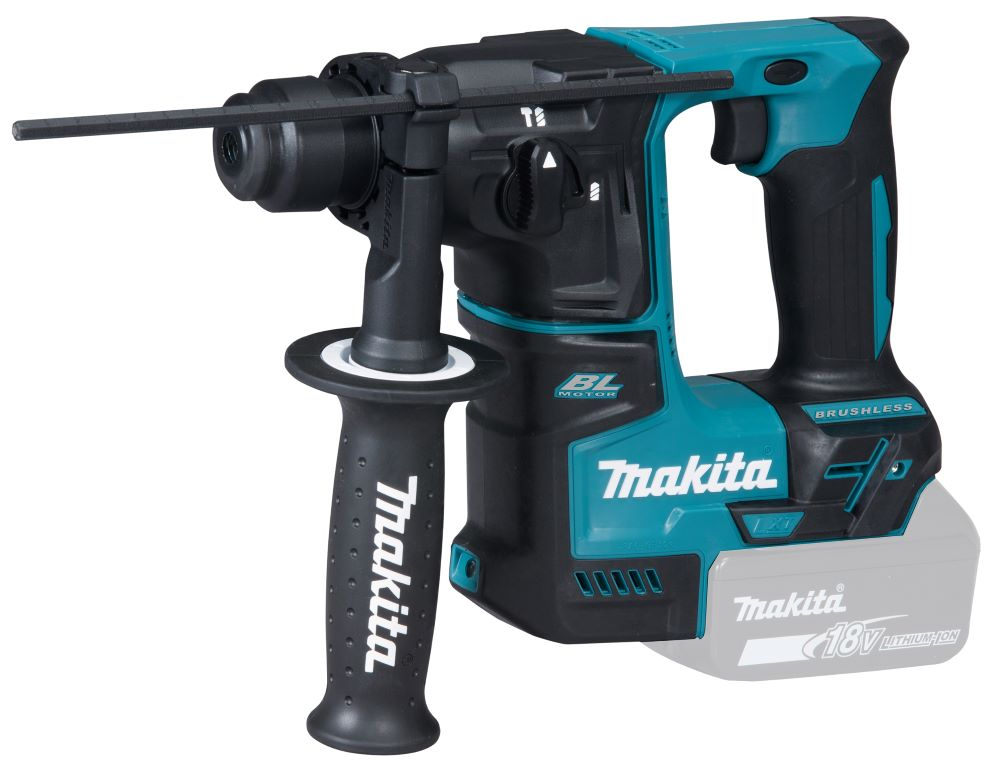

Makita DHR171Z 18V LXT Brushless Rotary Hammer Drill 17mm – SDS+ (Body Only)

Makita DHR171Z 18V LXT Brushless Rotary Hammer Drill 17mm – SDS+ (Body Only)

Stock Code: DHR171Z
Available to Order
£199.20 (inc VAT) per each
£166.00 (exc VAT)
Quantity: - +

Makita DHR171Z 18V LXT Brushless Rotary Hammer 17mm – Compact SDS+ Drill for Masonry and Fixings (Body Only)


The Makita DHR171Z is a compact and powerful brushless SDS+ rotary hammer drill, designed for precision drilling in concrete, masonry, wood, and steel. Part of the 18V LXT system, it delivers class-leading performance with a brushless motor that enhances efficiency, increases runtime, and reduces maintenance.


With a 17mm concrete capacity and dual operation modes (rotary only and rotary hammer), the DHR171Z is ideal for electricians, plumbers, and construction professionals working in confined or overhead spaces. Features such as low vibration, one-touch bit insertion, and a built-in LED light make it a reliable, jobsite-ready tool.

✅ Key Benefits:

  • Brushless motor – improves runtime, efficiency, and tool life

  • Compact & lightweight (2.8kg with battery) – ideal for overhead or tight-space drilling

  • 17mm concrete capacity – ideal for fixings, anchors, and small masonry jobs

  • 2-mode operation – choose between Rotary Only or Rotary Hammer

  • SDS+ quick-change chuck – one-touch bit insertion and removal

  • Low vibration design – enhanced user comfort during extended use

  • Built-in LED work light – improves visibility in dark or awkward spaces

  • Electric brake – for added safety and control

  • Part of the Makita 18V LXT system – compatible with all LXT batteries and chargers

⚠️ Please Note:
This is a body-only tool. Battery and charger are not included and must be purchased separately.

BrandMakita
Brushless MotorYes
No load speed0 - 680 min⁻¹
Voltage18V
Product Dimensions (L x W x H):273 x 86 x 211 mm
Sound Power Level (LWA)101 dB(A)
Sound Pressure Level (LpA)90 dB(A)
Noise Uncertainty (K Factor)3 dB(A)
Battery SystemLXT
Tool weight with battery2.1 - 2.8 kg
Nominal Battery Voltage18 V
Body OnlyYes
Body Only MachineYes
Electronic brakeYes
Max. Drilling Diameter in Wood13 mm
Max. Drilling Diameter in Steel10 mm
Voltage LXTYes
Max Output Power480 W
Impact Energy1.2 J
Impacts per Minute (IPM)0 - 4800 min⁻¹
Adapted for SDS-PLUS bitsYes
Max. Drilling Diameter in Concrete17 mm
Optimum Drilling Diameter Range in Concrete5 - 8 mm
Vibration Level. Hammer Drilling Into Concrete11.2 m/s²
Vibration Uncertainty (K Factor). Hammer Drilling Into Concrete1.5 m/s²

There are no downloads for this product.
