Makita DLS714NZ 18Vx2 LXT Brushless Slide Compound Mitre Saw – 190mm, Body Only

Makita DLS714NZ 18Vx2 LXT Brushless Slide Compound Mitre Saw – 190mm, Body Only

Stock Code: DLS714NZ
Available to Order
£752.40 (inc VAT) per each
£627.00 (exc VAT)
Quantity: - +

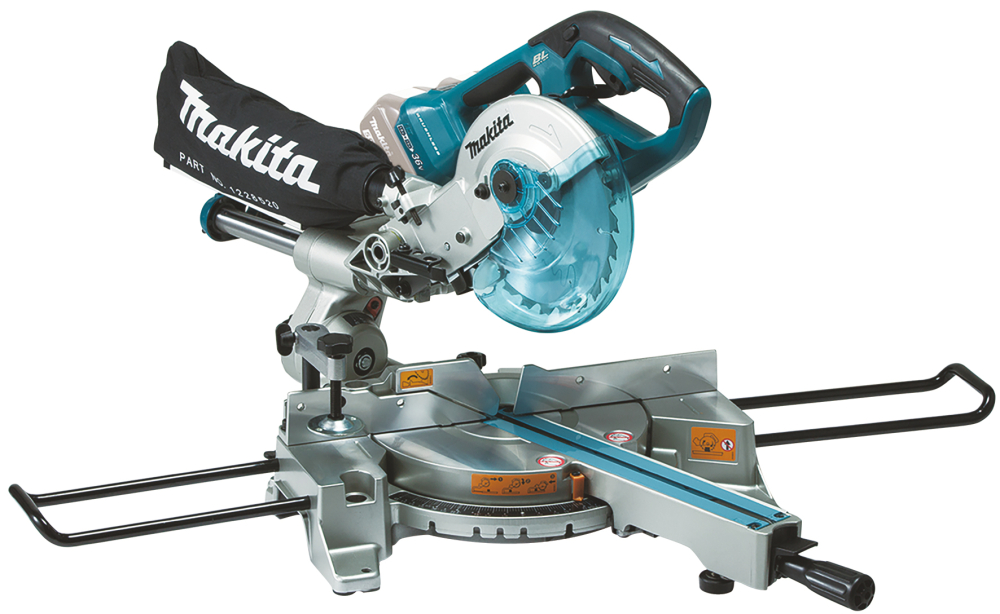

Makita DLS714NZ 18Vx2 LXT Brushless Slide Compound Mitre Saw – 190mm Cordless Power for Precision On-Site Cutting (Body Only)


The Makita DLS714NZ is a compact yet powerful 190mm (7-1/2") brushless slide compound mitre saw, delivering the performance of corded tools with the freedom of dual 18V LXT batteries (36V total). Featuring a brushless motor, smooth sliding rail system, and a wide range of mitre and bevel angles, this saw is ideal for precise crosscuts, mitres, and compound angles on-site. Its lightweight, portable design makes it perfect for joiners, shopfitters, and finishing carpenters working across multiple job locations.


✅ Key Benefits:

  • 190mm blade diameter – ideal for second fix, interior finishing, flooring, and trim

  • Powered by 2x 18V LXT batteries (36V total) – cordless with corded-level power (batteries sold separately)

  • Brushless motor – improves runtime, power output, and motor longevity

  • Slide compound design – allows wider crosscuts in a compact unit

  • Mitre range: 0–47° left / 0–57° right – versatile angled cutting for various applications

  • Bevel range: 0–45° left and right – dual bevel for quick compound mitres

  • Electric brake + soft start – safer and smoother operation

  • Dust collection port – for cleaner operation when connected to extractor

  • Lightweight and portable (13.5 kg) – easy to transport and set up on-site

  • Aluminium base and precision rail system – stable and durable for accurate cuts

  • Ideal for finishing carpenters, floorers, and installation professionals


⚠️ Body only – batteries, charger, and stand not included. Fully compatible with all Makita 18V LXT batteries.

BrandMakita
Brushless MotorYes
No load speed5700 min⁻¹
Voltage18V
Vibration Level (3 axes)≤ 2.5 m/s²
Vibration Uncertainty (K Factor)1.5 m/s²
Product Dimensions (L x W x H):655 x 430 x 445 mm
Sound Power Level (LWA)97 dB(A)
Sound Pressure Level (LpA)88 dB(A)
Noise Uncertainty (K Factor)3 dB(A)
Vacuum cleaner connection Ø in / out32/37 mm
Battery SystemLXT
Bore Size (Arbor Diameter)20 mm
Tool weight with battery14.4 - 14.7 kg
Nominal Battery Voltage2x 18 V
Body OnlyYes
Body Only MachineYes
Blade Diameter190 mm
Voltage LXTYes
Max. Bevel Range (Left)45 / 5 º
Capacity 45°52 x 212 mm
Capacity 90°52 x 300 mm
Max. Mitre Range (Left)47 / 57 º
Capacity 45° left40 x 300 mm
