Makita JV102DZ 12V Max Brushless Jigsaw – Body Only

Makita JV102DZ 12V Max Brushless Jigsaw – Body Only

Stock Code: JV102DZ
Available to Order
£164.40 (inc VAT) per each
£137.00 (exc VAT)
Quantity: - +

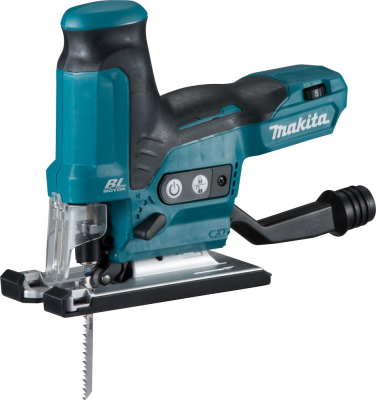

Makita JV102DZ 12V Max CXT Brushless Barrel Grip Jigsaw – Body Only

The Makita JV102DZ is a compact, cordless barrel grip jigsaw with a high-efficiency brushless motor, ideal for precision cutting in wood, plastics, metal, and more. As part of the Makita 12V Max CXT platform, it combines portability with pro-grade performance, making it a perfect choice for interior finishing, cabinetry, and curved cutting applications.


The barrel grip design allows closer control for scroll or detailed work, especially in overhead or awkward positions. A tool-less blade clamp, 3 orbital settings, and variable speed dial deliver the adaptability and ease-of-use professionals demand.


✅ Key Benefits:

  • Body only – battery and charger sold separately

  • Brushless motor – for longer runtime and increased durability

  • Barrel grip design – excellent control for curved and detailed cuts

  • Tool-less blade change – quick and convenient swaps

  • 3 orbital settings + straight cutting – adjust for speed or finish

  • Bevel cutting up to 45° – for angled cuts

  • Variable speed dial + trigger (800–3,000spm) – control matched to material

  • Dust blower function + LED light – clearer, more accurate cuts

  • Compatible with all Makita 12V Max CXT batteries


⚠️ Please Note:
This is a body-only model. Battery and charger are not included. Use the correct blade type for each material and always wear appropriate PPE.

BrandMakita
Brushless MotorYes
Voltage12V
Vibration Uncertainty (K Factor)1.5 m/s²
Product Dimensions (L x W x H):237 x 76 x 186 mm
Sound Power Level (LWA)96 dB(A)
Sound Pressure Level (LpA)85 dB(A)
Noise Uncertainty (K Factor)3 dB(A)
Strokes per Minute (SPM)800 - 3000 min⁻¹
Vacuum cleaner connection Ø in / out23/28 mm
Battery SystemCXT
Tool weight with battery1.8 - 1.9 kg
Nominal Battery Voltage12 V
Body OnlyYes
Body Only MachineYes
Voltage CXTYes
Max Output Power280 W
Max. Bevel Range (Left)45 º
Vibration Level. Cutting Sheet Metal9.5 m/s²
Length of Stroke23 mm
Max. Cutting Capacity in Wood (90°)90 mm
Vibration Level. Cutting Boards11.5 m/s²
Max. Cutting Capacity in Steel (90°)10 mm
Capacity Aluminium20 mm
Orbital ActionYes
