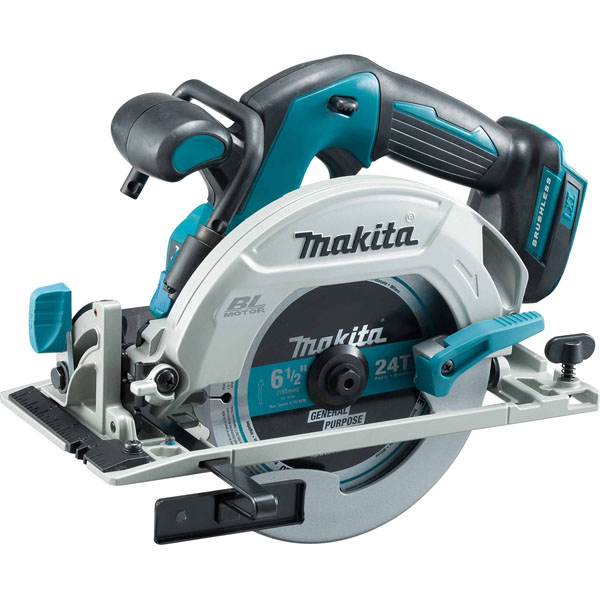

Makita DHS680Z 18V LXT Brushless Circular Saw – 165mm, Body Only

Makita DHS680Z 18V LXT Brushless Circular Saw – 165mm, Body Only

Stock Code: DHS680Z
In Stock for despatch
£240.00 (inc VAT) per each
£200.00 (exc VAT)
Quantity: - +

Makita DHS680Z 18V LXT Brushless Circular Saw – High-Speed 165mm Cordless Cutting with Automatic Torque Drive


The Makita DHS680Z is a powerful and precise 165mm brushless circular saw, engineered for professional performance in timber, sheet, and structural cutting tasks. Featuring Automatic Torque Drive Technology (ADT), a high-speed 5,000 RPM motor, and a compact cordless design, it delivers smooth, controlled cuts with outstanding efficiency.


✅ Key Benefits:

  • 165mm blade diameter – delivers a max cutting depth of 57mm at 90°, 41mm at 45°, and 37mm at 50°

  • Brushless motor – increases cutting efficiency, extends tool life, and reduces battery drain

  • Automatic Torque Drive Technology (ADT) – adjusts cutting speed and torque automatically depending on load

  • High-speed output – delivers up to 5,000 RPM for fast, clean cuts through wood and board

  • Electric brake – rapidly stops blade rotation for added job site safety

  • Blower function – clears dust from the cutting line for improved visibility

  • LED job light – ensures precision cutting even in dim work conditions

  • Ergonomic, compact design – only 350mm in length and approx. 3.3kg with battery (not included)

  • Aluminium base plate – provides rigidity and consistent tracking across materials

  • Compatible with guide rails (using optional adapter – not included)

  • XPT (eXtreme Protection Technology) – protects against dust and moisture for increased tool durability

  • Compatible with all Makita 18V LXT batteries – integrates with your existing cordless setup


⚠️ Body only – battery, charger, and guide rail adapter not included. Compatible with all Makita 18V LXT batteries and chargers.

BrandMakita
Brushless MotorYes
No load speed5000 min⁻¹
Voltage18V
Product Dimensions (L x W x H):350 x 170 x 238 mm
Sound Power Level (LWA)105 dB(A)
Sound Pressure Level (LpA)94 dB(A)
Noise Uncertainty (K Factor)3 dB(A)
Vacuum cleaner connection Ø in / out35/40 mm
Max. Cutting Depth at 90°57 mm
Battery SystemLXT
Bore Size (Arbor Diameter)20 mm
Max. Cutting Depth at 45°41 mm
Tool weight with battery3.0 - 3.3 kg
Nominal Battery Voltage18 V
Body OnlyYes
Body Only MachineYes
Blade Diameter165 mm
Voltage LXTYes
Max Output Power680 W
Max. Bevel Range (Left)0 / 50 º
Max. Cutting Depth at 50°37 mm
Vibration Level. Cutting Wood≤ 2.5 m/s²
Vibration Uncertainty (K Factor). Cutting Wood1.5 m/s²
Capacity 45°41 mm
