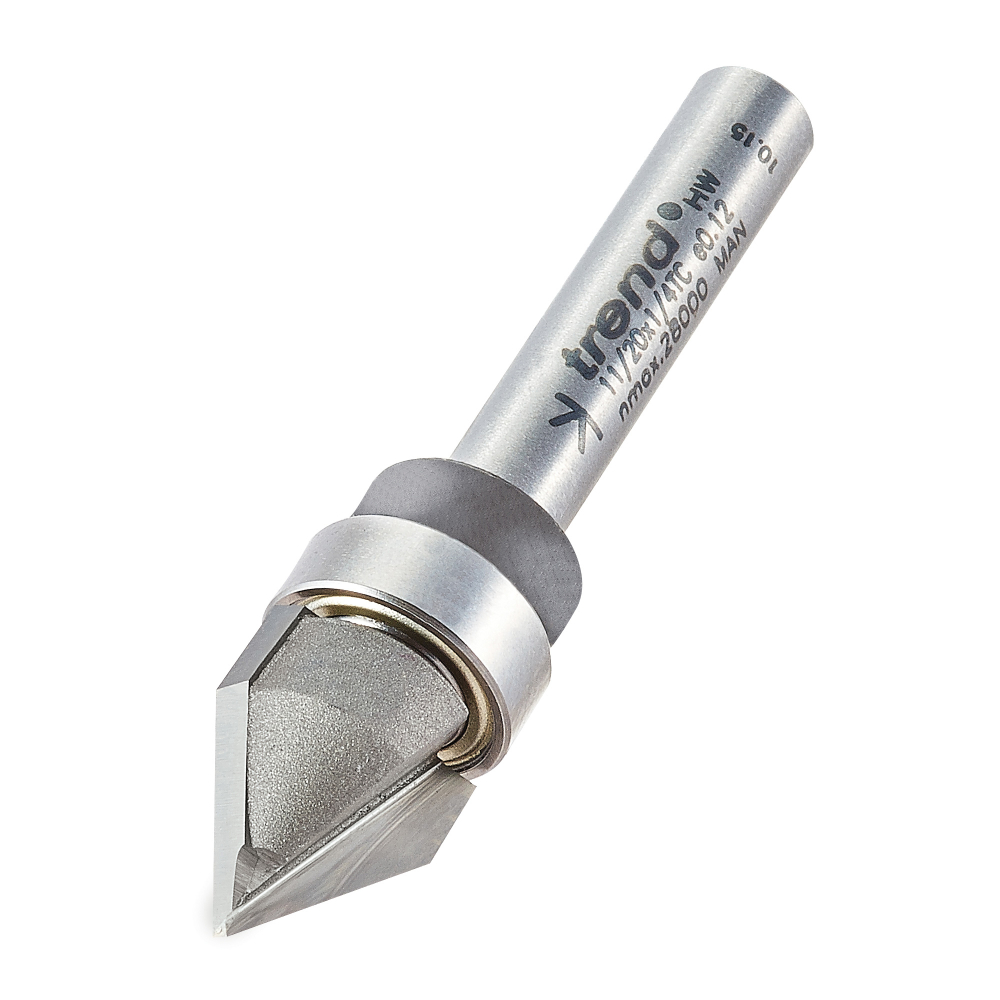

Trend 11/20X1/4TC Panel mould cutter

Trend 11/20X1/4TC Panel mould cutter

Stock Code: 11_20X1_4TC
Available to Order
£63.28 (inc VAT) per each
£52.73 (exc VAT)
Quantity: - +
Panel mould cutter. D=1/2 inch|D=12.7 mm|C=16 mm|B=12.7 mm|A=60 degrees|OL=66.61 mm|Shank Diameter=1/4 inch Template thickness should be at least 5mm thicker than cutter cut length of cutter. |Approximately 1.0mm flat will be found on the nose.
BrandTrend
Shank Diameter1/4"
Diameter mm12.7
Cut Length mm16
Overall Length mm66.61
Angle60
Diameter Imperial1/2"
Bearing Diameter mm12.7
Bearing Diameter Imperial1/2"
