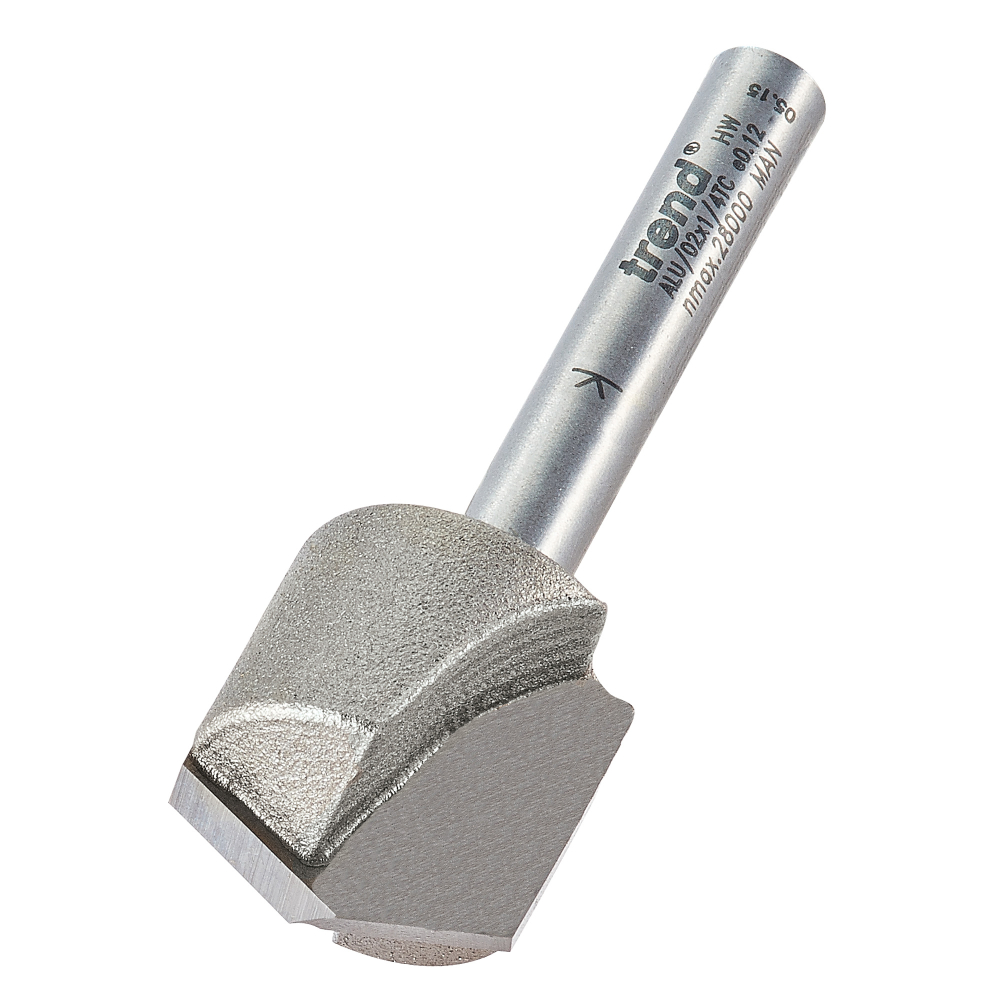

Trend ALU/02X1/4TC Alucobond 22.5 degree (135 degree) v groove x 18mm

Trend ALU/02X1/4TC Alucobond 22.5 degree (135 degree) v groove x 18mm

Stock Code: ALU_02X1_4TC
Available to Order
£85.02 (inc VAT) per each
£70.85 (exc VAT)
Quantity: - +
Alucobond 22.5 degree (135 degree) v groove x 18mm . D1=18 mm|C=13 mm|OL=57 mm|A=22.5 degrees|Shank Diameter=1/4 Specially designed tools for aluminium composite cladding material such as Alucobond, Dibond which comprises an aluminium cover with polyethylene core.|The v groove cutters rout into the cover and part of the core to allow folding of material by hand.|Has a 135 degree included angle with 2mm flat at base and is used to create 45 degree fold.|Use at 12000-15000 RPM, feed speed 400 - 600mm/min. depending on thickness and machine (CNC machine or hand). Cooling is not required.
BrandTrend
Shank Diameter1/4"
Diameter mm18
Cut Length mm13
Overall Length mm57
Angle22.5

There are no downloads for this product.
